NuPrime Pure AC-04 NuPrime Pure AC-04

NuPrime Pure AC-04

9 990 kr
Finns i lager
Beställningsvara
.
Beställningsvara
Produktbeskrivning:

Vänligen Observera! Bilden på baksidan visar amerikanska uttag, Pure AC-04 levereras alltid med uttag för svensk standard.



Pure AC-4 är NuPrime senaste störmrenare som bygger vidare på teknik implementerad i referens-serien Evolution. Kortfattat så ger denna enhet mycket ren spänning och gör ett långt bättre jobb än traditionella nätlister. Totalt 4st uttag, och just 4st och inte fler för att problem med interferens mellan apparater blir överhängande med många anslutna produkter. Så vill man koppla flera apparater än de möjliga fyra så är rekommendationen att köpa flera AC-4.

2st uttag är avsedda för lågnivå, elektronik som försteg, DAC osv medans de andra två mer för strömstarka produkter som slutsteg. Vi får här alltså en filtrering även på slutsteg som inte inkräktar på dynamik och är kapabel till stora effektuttag.



  • Display visar aktuell spänning samt effektuttag, displaystyrkan är ställbar i 2st steg.
  • Utrustad med kontakter från Furutech, PFX med guldplättering
  • Trigger in/ut





Most of our audio devices share the home AC line with other electrical appliances such as refrigerators, washing machines, air conditioner and LED lights. The home appliances emit electrical noise through the AC line. It is not a problem for entry-level mass market consumer audio system, but in a high-end system where we are optimizing SNR > 90db and less than 0.1% THD+N, this is an area that we should pay attention. The Pure AC-4 improves your audio system sound stage and resolution. You can hear more details and harmonics in your music.





High-End Implementation Above Other Similar Devices

Most of the entry level power conditioner devices don’t do a good job of isolating the noise, and also compress the energy provided by the AC power supply. This is due to the physical characteristics of simple filter design and resulted in the loss of bass isolation and dynamics. High-end devices with a sophisticated design that can achieve excellent noise filtering without the side effects cost much more than the price of Pure AC-4. Furthermore, high power amplifiers and small signal devices require very different AC filter designs and entry-level AC filter devices are not optimized for either one of them.

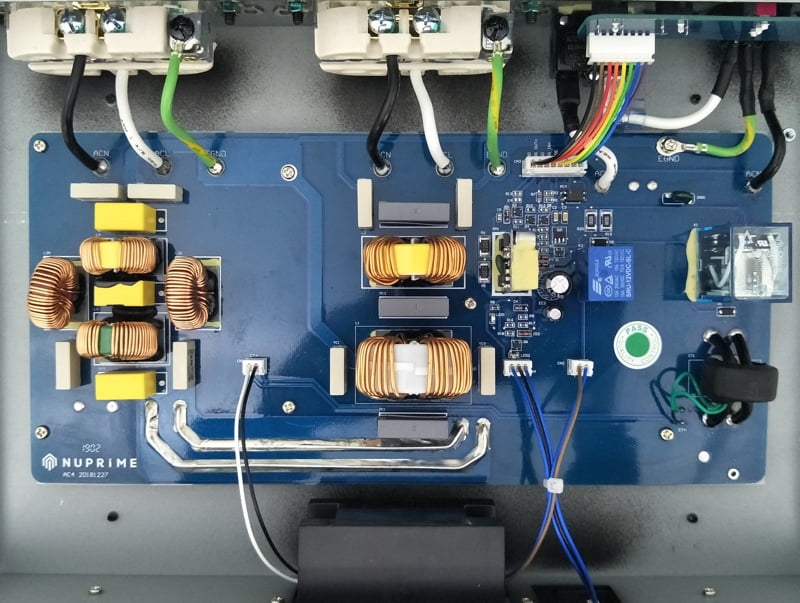

There are two sets of filters inside Pure AC-4 cater to the range of target applications:

1) Small-signal sensitive devices such as the preamp, DAC, and players utilizing the two output sockets, each with a current range of 3A to 8A. An extremely powerful 7th-order LC filter circuit (using 7 high-power inductors, capacitors) with maximum 1000 times isolation performance is explicitly designed for small signal devices that are very susceptible to noise interference.





2) High power amplifiers using two output sockets, each with a current range of 10A to 15A. A 5th-order LC filter with 10 to 50 times isolation is designed to supply a maximum current of 27A. The inductor is wounded with 1.6mm thick copper wire to allow for high current flow.









Pure AC-4 outperforms other power conditioners in its price range.



Features

  • FURUTECH FPX high-grade electroplated 24k gold AC sockets. The FPX series has a pin insert construction that ensures increased contact areas and stable transmission.
  • AC monitoring that displays voltage, current, and power simultaneously. The display can be turned off.

Implementing more than 4 AC sockets on the same chassis would increase interference and therefore degrade performance. We recommend that users purchase multiple Pure AC-4 devices if they need more than 4 sockets.




Artikelnummer:
NuPrime-Pure-AC-04
